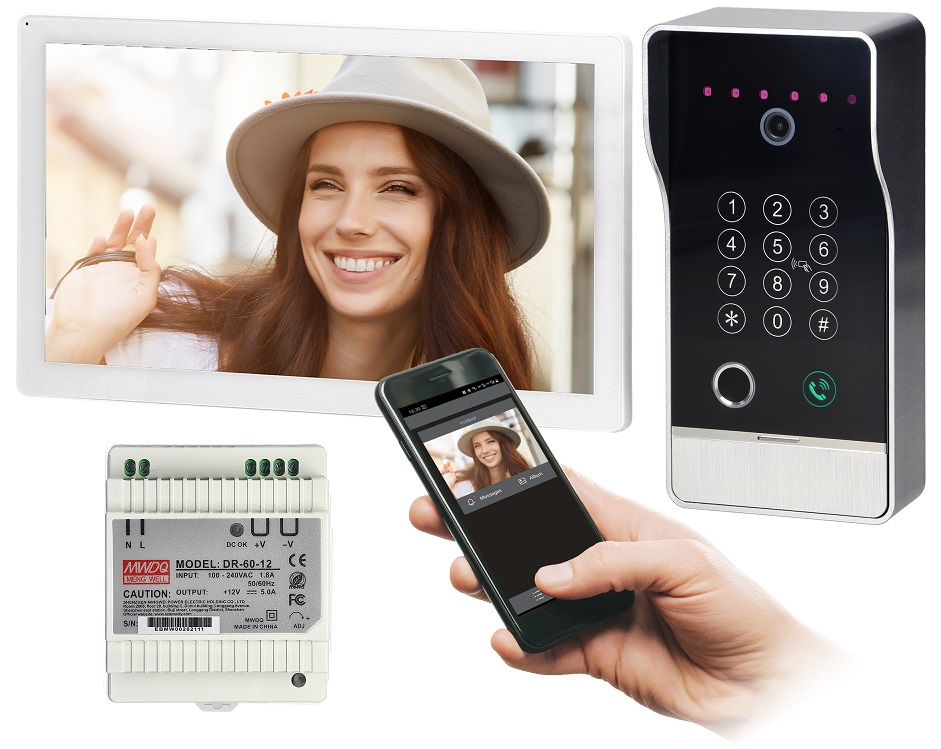

Video Intercom 10" w/ Access Code/Fingerprint/Proximity Reader - ORNO

Elegant: a modern, large 10" LCD monitor in a housing that we will match any interior, and the use of DIN rail power supply helps to hide the cables. The kit includes a surface-mounted outdoor panel. Security: motion detector, viewing, recording and saving video and photo files from the camera to a Micro SD card ensure that we always know who has visited us. Waterproof: an IP65 rating means you don´t have to worry about the outdoor panel even in heavy, driving rain. SMART function: control from a smartphone or tablet from wherever we are thanks to a simple app available both for Android and iOS. Gate control: easily opened with a fingerprint, proximity card or PIN code on the illuminated keypad of the code lock panel. Extension: you can extend the set to up to 2 outdoor stations, 6 monitors and 2 CCTV cameras.

- Installation technique: Multi-wire system
- With video: yes
- Transmission Type: Wired/Wi-Fi
- Current supply: DIN rail power supply
- Number of indoor stations: 1
- Can be connected to smartphone: yes
- Number of outdoor stations: 1
- Expandable to max. number of monitors: 6
- Expandable to max. number of outdoor stations: 2
- Wi-Fi frequency: 2.40 GHz
- Expandable to max. number of CCTV cameras : 2
- Operation port lock: yes
- Electrical stroke current supply: from external panel
- With automatic door opening: yes
- With day/night function: yes

Monitor
- Mounting method: Surface mounting (plaster)
- Hands free: yes
- Screen diagonal: 10"
- Monitor screen resolution: 1024 x 600
- Picture system: PAL/NTSC
- Property image system: Color
- SD card reader: yes
- Number of rings: 3
- Volume control: yes
- Display color: white
- Width: 247mm
- Height: 151.50 mm
- Depth: 18mm

external panel
- Number of call buttons: 1
- Mounting method: Flush mounting (plaster)
- Camera opening angle (horizontal): 107°
- Camera opening angle (vertical): 54°
- With digital door code: yes
- Card reader and proximity tags: yes
- Frequency of proximity cards and tags: 125 kHz
- With lid: yes
- Degree of protection (IP): IP65
- Front Material: Aluminum
- Width: 100mm
- Height: 200mm
- Depth: 55mm
