7" Video Intercom with RFID Reader (Silver) - ORNO

Description
The TALOS video intercom set is designed for individual users, small businesses and institutions. The devices are characterized by an intuitive 4-wire connection, which allows easy self-assembly and reduces the number of cables leading to the gate. Thanks to the Wi-Fi functions and remote control, it is possible to operate the video intercom from anywhere in the world via the popular and recognized smart home platform, Tuya.

The Tuya Smart application, available for mobile devices, allows you to easily connect to equipment in your home and manage access to your property and building.

The TALOS external unit offers 2MP, 1920x1080, 1080p color camera images and a wide viewing angle of 112° horizontally, providing a complete view. The night lighting function guarantees visibility in the dark without dazzling the visitor and without signaling the connection. The RFID reader allows easy entry into the property for authorized persons, and the low current electrical lock (max. 500mA) is powered directly from the outdoor unit, so no additional power supply is required, resulting in fewer wires to run. pass through the garden.

A motion sensor on the external unit allows photo/video recording when motion is detected (microSD card). The outdoor unit is IP65 rated, made from high-quality aluminum and has a rain cover.

The monitor has a large, clear touchscreen for quick and simple navigation. Talos is a model with a memory function that records events while you are away or during a call, the internal memory is enough to store 30 images. Optionally, you can use the SD card reader, which gives you the option to activate the recording function (movies) and increase the photo storage capacity, or you can upload your own favorite melodies as the sound of an incoming call , default there are 6 basic melodies to choose from. Additionally, a 4-stage volume control (including full mute) adapts the device to the user´s needs.

The device also has the functions of a weather station, digital photo frame and answering machine.

It is also expandable with up to 3 additional monitors, an additional external unit and 2 additional CCTV cameras to create a larger entrance control and monitoring system, even with two residential entrances and a multi-story building. An additional feature is the intercom function, which allows connections between other monitors, facilitating communication in large buildings, for example, between floors (function possible with additional monitors).

Features
With video: ✓
Current source: Electric energy
Rated voltage: 12V DC
Transmission type: Wired
Can be connected to smartphone: ✓
Wi-Fi Frequency: 2.4GHz
Wi-Fi standard: IEEE 802.11 b/g/n
Application: Tuya Smart
Installation technique: Multi-wire system

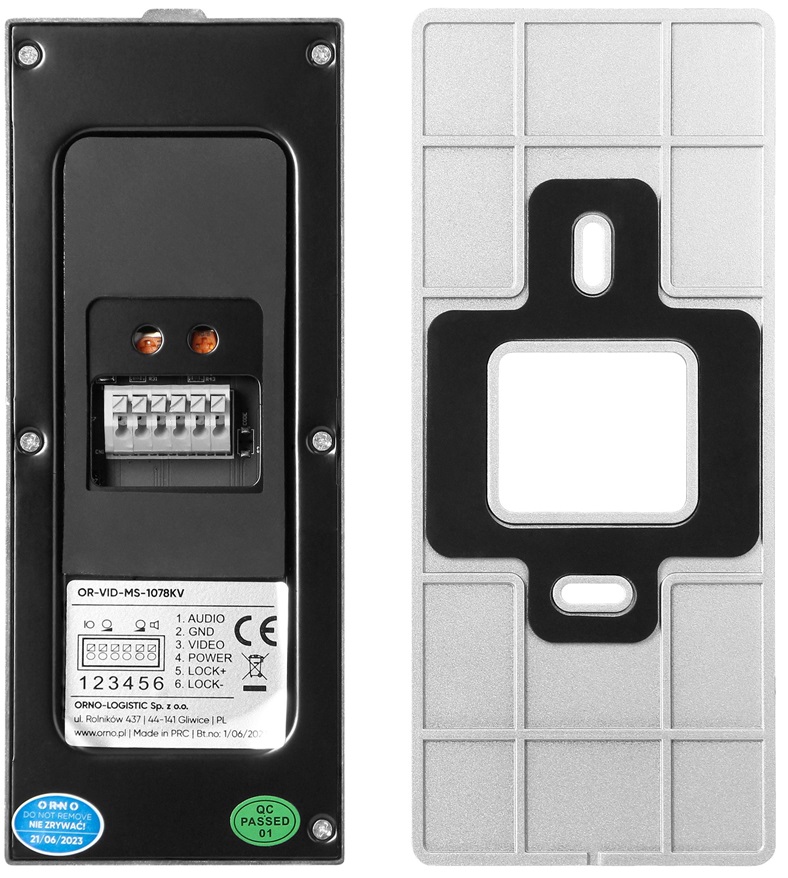

Number of wires (*from the external station to the electrical attack): 4 (+2)*
Number of indoor stations: 1
Number of external stations: 1
Expandable up to max. number of indoor stations: 4
Expandable up to max. number of external stations: 2
Expandable up to max. number of CCTV cameras: 2
Operating door lock: ✓
Electric strike current supply: No additional power supply required
Electric strike connection system: With external panel
With automatic door opening: ✓
With day/night function: ✓

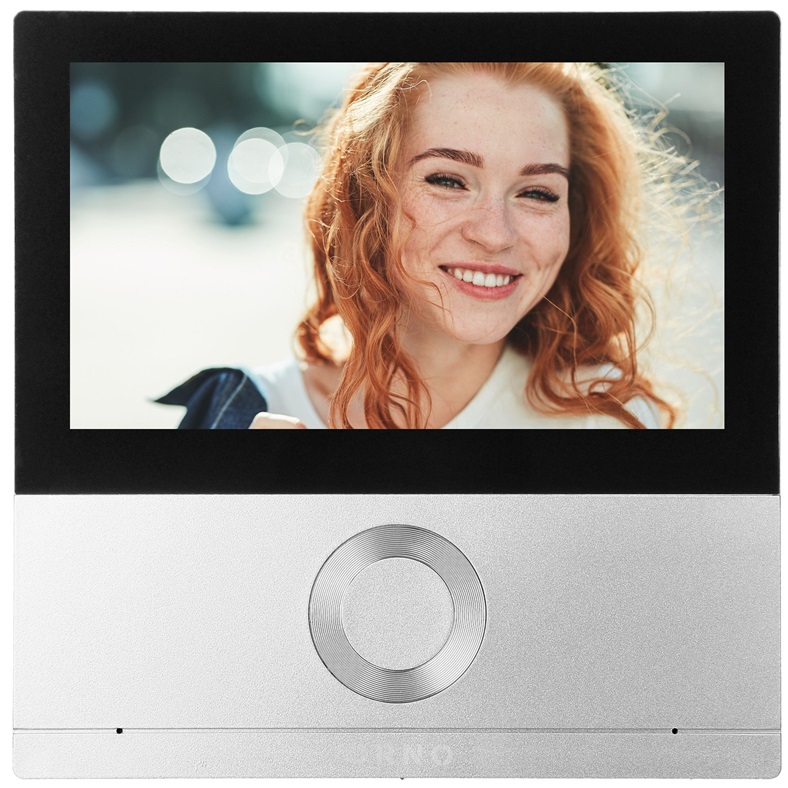

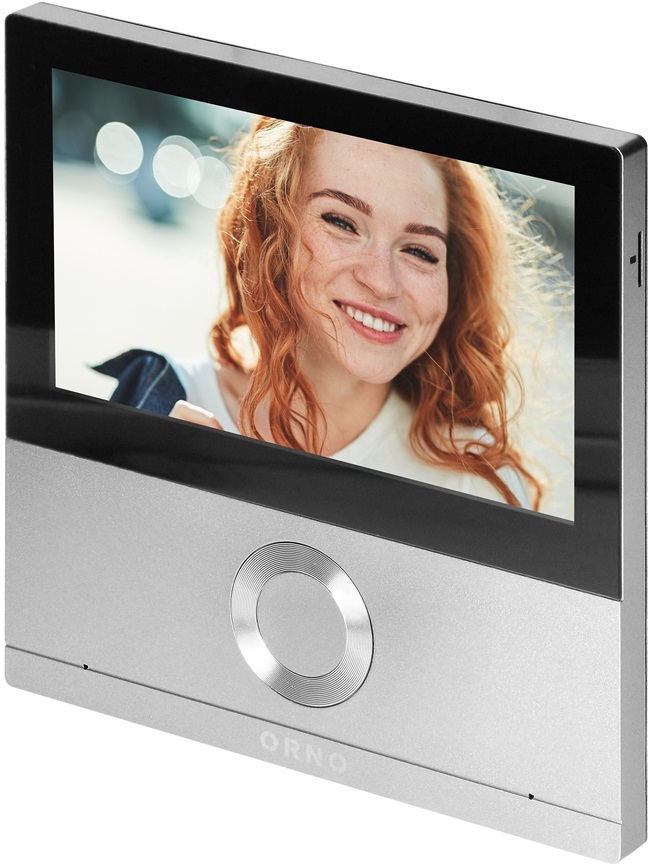

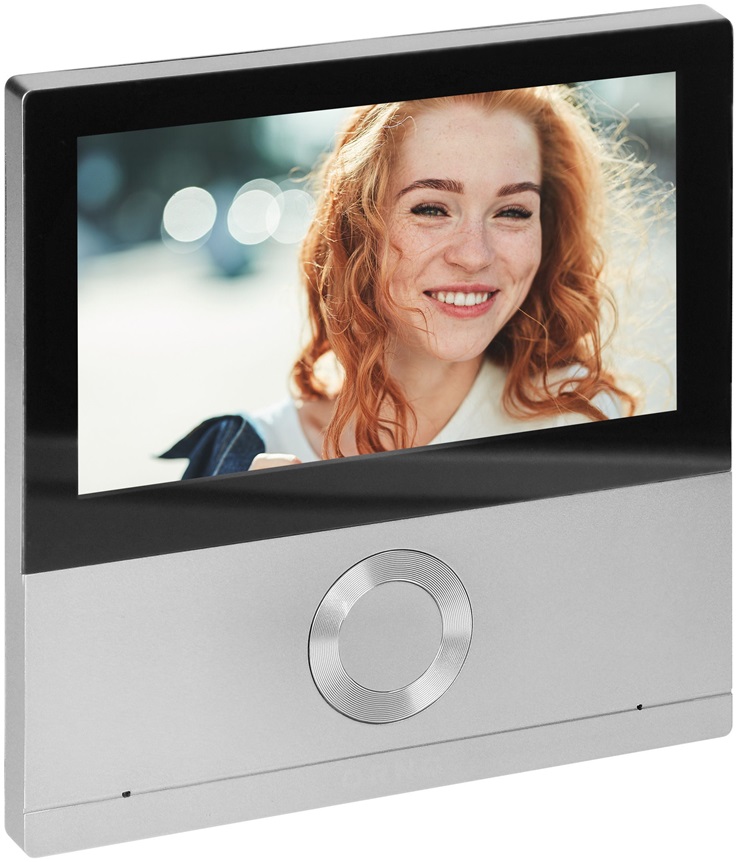

Monitor
Indoor Station Mounting Method: Surface Mount
Hands-free: ✓
Screen diagonal [inches]: 7"
Screen resolution: 1024x600
Touchscreen: ✓
Property imaging system: Color
With memory function: ✓
SD card reader: ✓
Internal communication: ✓
Number of rings: 6
Specific ring tone: ✓
Volume control: ✓
Changeable ring tone: ✓
Indoor station material: Plastic
Indoor station color: Silver
Monitor dimensions (Width) [mm]: 181
Monitor dimensions (Height) [mm]: 181
Monitor Dimensions(Depth) [mm]: 18
Other features: Answering machine; Weather station

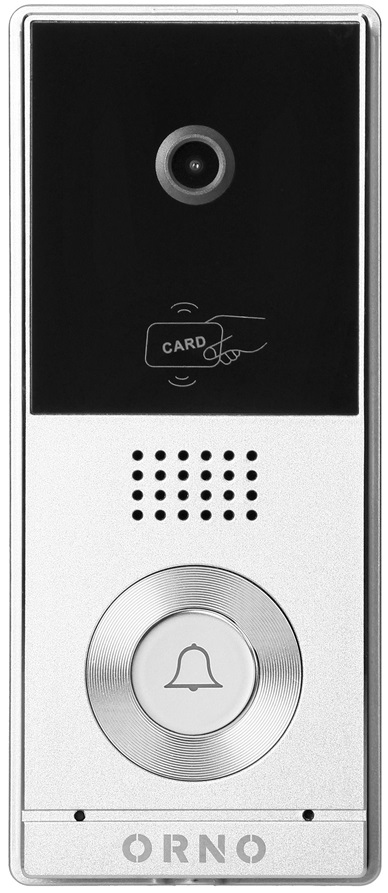

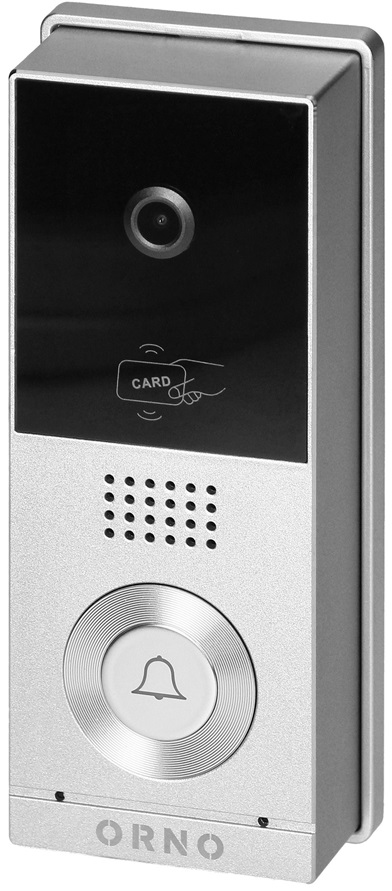

External unit
Number of call buttons: 1
Outdoor station mounting method: Surface mounting
Camera resolution: 1920x1080
Camera viewing angle (vertical): 55°
Camera viewing angle (horizontal): 112°
Night light: IR
With digital door code: ✗
Proximity card and tag reader: ✓
RFID tag frequency: 125kHz
Label space/information surface: ✗
With cover: ✓
Degree of protection (IP): IP65
Outdoor station material: Aluminum
Outdoor station color: Silver
Width [mm]: 67
Height [mm]: 130
Depth [mm]: 33
Other features: RFID - max. 24 users (key fobs included: 5 users + 2 administrative)
