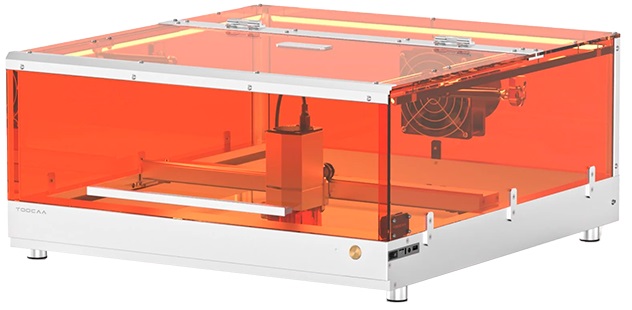

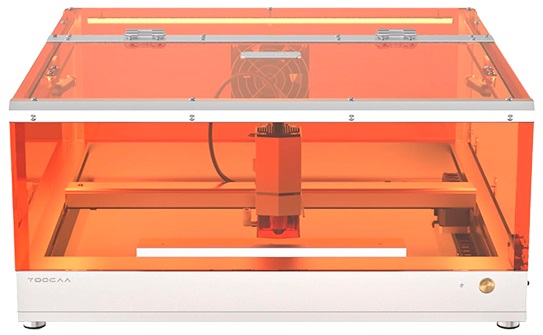

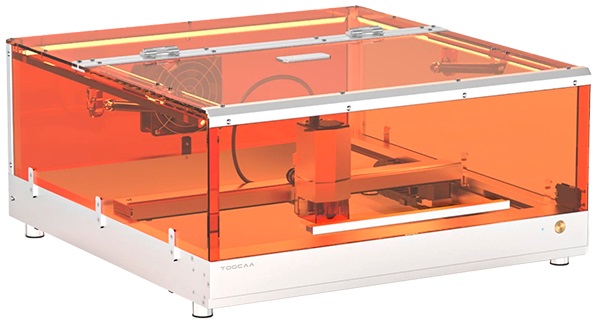

L2 10W Laser Cutting and Engraving Machine with Honeycomb Panel and Magic Box (415 x 395 mm) - TOOCAA

Description
The TOOCAA L2 is a desktop laser cutting and engraving machine designed to meet the needs of professionals, educators, and DIY enthusiasts. Its combination of power, precision, and advanced safety features makes it an essential tool for a wide range of creative and technical applications.

Equipped with a 10W diode laser module, the TOOCAA L2 delivers exceptional cutting and engraving performance on materials such as wood, dark acrylic, leather, and anodized aluminum. Its 415 x 395 mm working area allows users to handle large-scale projects with ease, while its engraving speed of up to 400 mm/s ensures efficient production.

The focusing system of the TOOCAA L2 is designed to provide quick and precise adjustment, greatly simplifying job setup. Thanks to its lever-based focusing mechanism and height block, it ensures that the focal distance between the laser and the material is always optimized, resulting in sharper engravings and cleaner cuts. This system reduces manual error and speeds up workflow, enabling efficient transitions from one project to another.

The machine’s advanced connectivity includes a USB-C port, which offers a more stable and faster data transmission compared to traditional interfaces. This modern connector improves integration with current devices, reduces electromagnetic interference, and enhances the overall user experience, especially in environments where a reliable connection is essential for avoiding errors during long work sessions.

The enclosure of the TOOCAA L2 is assisted by nitrogen-filled pistons that provide smooth and controlled lifting of the top cover. This system not only improves ergonomics by reducing physical effort, but also increases safety by preventing sudden closures that could damage components or compromise user safety. It reinforces the robust and professional character of the machine’s overall design.

Safety is a priority in the design of the TOOCAA L2. Its fully enclosed structure with 6 mm acrylic panels protects the user from laser exposure and reduces smoke dispersion. Additionally, it includes a magnetic door switch that automatically stops the laser when opened, flame detection, and a gyroscope for tilt detection, ensuring a safe working environment at all times.

The machine is compatible with professional software such as LightBurn and LaserGRBL and can be operated both online via USB-C and offline using a microSD card. Its modular design facilitates maintenance and component upgrades, while its aluminum frame ensures durability and stability during extended use.

The TOOCAA L2 also supports a wide range of optional accessories. The Air Assist kit improves cutting quality by reducing residue buildup and cooling the work area. The honeycomb panel enhances ventilation and provides a stable working surface. The smart camera allows real-time monitoring, and the 5-in-1 rotary roller enables engraving on cylindrical objects. For enclosed spaces, the external fume purifier ensures efficient extraction of fumes generated during operation.

Regarding material compatibility, the TOOCAA L2 can engrave on a wide variety of surfaces including wood, slate, dark acrylic, leather, anodized aluminum, glass (with pre-treatment), ceramics, jade, marble, fabric, cardboard, and plastic. In terms of cutting, it can handle wood up to 6 mm thick with the 10W model.

The TOOCAA L2 represents a complete solution for users seeking a laser cutting and engraving tool that combines professional performance with advanced safety measures. Its versatility, materials compatibility, and support for professional software make it ideal for workshops, educational institutions, and custom manufacturing projects. With the TOOCAA L2, creativity and precision come together to turn ideas into reality.

Features
Technology: Laser cutting
Working volume: 415 x 395 mm
Laser type: Diode
Software: LightBurn, LaserGRBL, TOOCAA Studio
Connectivity: USB-C / microSD

Cutting and Engraving Properties
XY positioning resolution: µm
Z positioning resolution: µm
Maximum engraving speed: 400

Laser Properties
Laser power: 10 W
Laser type: Diode
Wavelength: 450 ± 5 nm
Laser spot size: 0.15 x 0.27 mm

Power Management
Power consumption: 40 W

Package Contents
Honeycomb Work Panel 500x500x22mm
Aluminum Panel 500x500mm
Set of 10 Laser Engraving Sheets
Fixed Top Cover Panel
Movable Top Cover Panel
Front Panel
Left Panel
Right Panel
Rear Panel
Upper Fixing Profile for Fixed Top Cover Panel
Upper Fixing Profile for Movable Top Cover Panel
Front Panel Profile
Front Panel Handle
Rear Mudguard Fixing Profile
Fan Flange
Fan
Fan Protection Mesh
Stainless Steel Clamp
Air Tube
Fan Power Adapter
Nitrogen Springs
Parts Kit
Machine Frame
Laser Module
Support Feet
Safety Glasses
Nuts and Bolts
Identification Plates
Hinge
Platinum Plate
Adapter Power supply
Power cord
3 mm socket wrench
2.5 mm socket wrench
2 mm socket wrench
Double-ended adjustable wrench
Small adjustable wrench
2.5 mm flathead screwdriver
Dust-free cloth
Focus block
USB cable
Card reader
TF card
Window mirror
USB drive lock
Consumable parts
User guide
Product Dimensions
Dimensions: 645 x 617 x 306 mm
Weight: 13 kg
