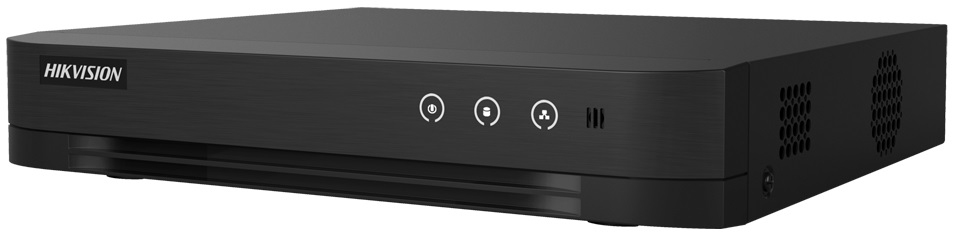

DVR Recorder 5n1 (4CH HDTVI/HDCVI/AHD/CVBS + 1CH IP) - HIKVISION

Description
- 5 in 1 DVR
- 4 HDTVI/HDCVI/AHD/CVBS video channels
- 1 CH IP (up to 5 CH IP in total, replacing analog channels)
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Maximum input resolution 1080p Lite
- Audio over coaxial cable
- Motion detection 2.0 on all analog channels
- Full HD HDMI and VGA output
- Audio input and output
- Space for 1 HD

Features
Product color: Black
Video format: HDTVI/HDCVI/AHD/CVBS/IP
Video inputs: 4 BNC channels (HDTVI / HDCVI / AHD / CVBS)
Hybrid configuration: 1 additional IP CH: Up to 5 IP channels (5 Mpx), replacing all BNC channels
Video outputs: 1 HDMI Full HD and 1 VGA, simultaneously;
Video resolution: English: HDMI: 1920x1080, 1280x1024, 1280x720 / 60 Hz
Audio inputs: Coaxial audio on all channels; 1 RCA channel
Audio outputs: 1 RCA channel
Two-way audio: reusing the audio input
Audio Bitrate: 64 Kbps
Audio compression: G. 711u
Video compression: Analog channels: H. 265 Pro+ / H. 265 Pro / H. 265 / H. 264+ / H. 264; IP channels: H. 265+ / H. 265 / H. 264+ / H. 264
Recording resolution: 1080p Lite/ 720p Lite/ VGA/ WD1/ 4CIF/ CIF
HDTVI input resolution: 1080p (25~30 fps), 720p (25~30 fps); HDCVI: 1080p (25~30 fps), 720p (25~30 fps); AHD: 1080p (25~30 fps), 720p (25~30 fps); CVBS: PAL/NTSC
Main stream encoding: For 1080p stream: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF (25 fps); For 720p stream: 720p/WD1/4CIF/VGA/CIF (25 fps); For SD stream: WD1/4CIF /VGA/CIF (25 fps (P), 30 fps (N));
Extra stream encoding: 4CIF (15 fps); CIF/QVGA (25 fps (P), 30 fps (N))
Video Bitrate: 32 Kbps to 4 Mbps
Simultaneous multifunctional: Péntaplex: Live, Recording, Playback, Backup and Remote Access
Alarms: None
Motion detector: Motion Detection 2.0 with human and vehicle classification applied to motion detection, Available on all analog channels.
Recording method: Manual, scheduled, motion detection
Backup: USB (Memory, HD, CD-RW, DVR-RW) / Red
Internal storage: 1 SATA 3.5 "HDD up to 4 TB (not included)
Communication: 2 x USB 2.0 (rear) / 1 x RJ45 (Ethernet)
Remote connections: 32
Remote access: Web Browser, Hik-Connect Smartphone App, iVMS-4200 and Hik-Central PC Software

Energy management
Power supply: DC 12 V, 1.5 A, = 16 W (without HD)

Environmental conditions
Operating temperature -10° ~ +55°C

Product dimensions and weight
Dimensions: 45 x 260 x 222 mm
Weight (without HD): 800g
