Mailo 10" Wi-Fi Video Door Phone with Full HD RFID Touch Screen - VIRONE

Description
MAILO is a complete Full HD video intercom set equipped with an advanced entry control and monitoring system. Its innovative functions and technology ensure peace of mind and security, while intuitive operation ensures ease of use. The set is intended for single-family homes. Thanks to the 4-wire connection, installation is easy and makes it easy to connect quickly by yourself.

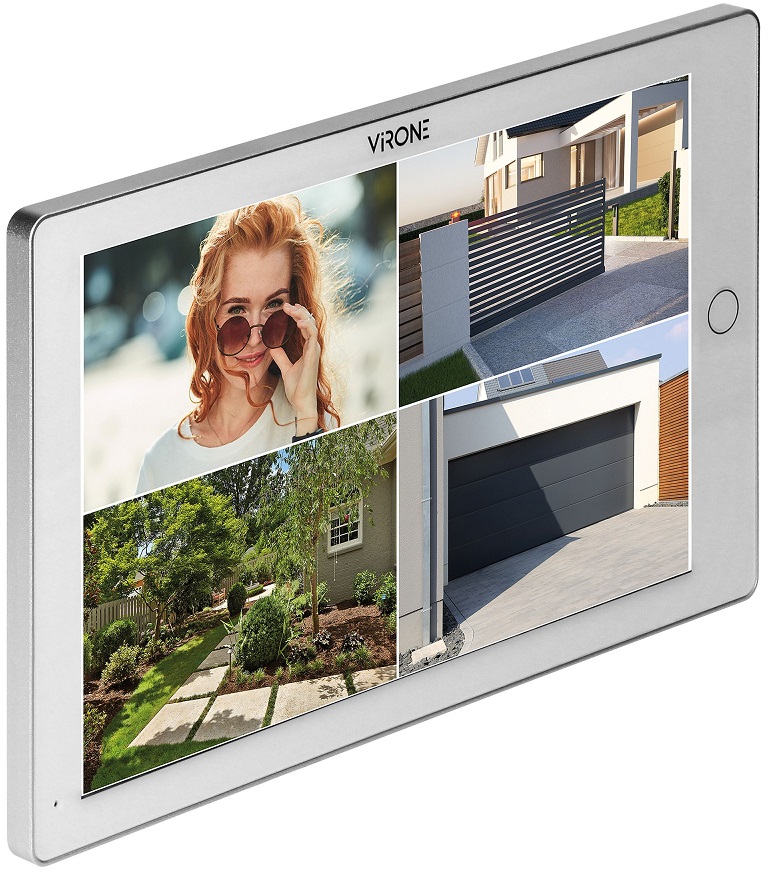

The 1024x600mpx monitor is equipped with a huge 10-inch touchscreen, which guarantees a clear image and intuitive navigation. Thanks to the split screen, it is possible to simultaneously monitor images from four video channels, making MAILO a central point for home monitoring.

Advanced smart home technology allows remote control via Wi-Fi and the Tuya Smart app. Simply install the platform on a smartphone (with support for Android and iOS systems) and synchronize it with the MAILO video monitor. Thanks to this, the entrance to the property can be easily monitored from anywhere in the world, ensuring peace of mind and security for family members.

Integrated features such as a microSD card reader and an answering machine provide a comprehensive solution for entry control and monitoring. With the MAILO video doorphone, the user does not have to worry about missing video and photo recordings while they are away. MAILO will also record an answered call, so that nothing escapes the attention of family members. In addition, the answering machine function allows a guest to leave a voice message when the user is not at home.

The video monitor is equipped with 12 different melodies, and the microSD card allows you to load your favorite music in mp3 format. This allows you to adjust the call sounds to your own preferences. The device has different sound levels, including complete mute, and the possibility of assigning a specific level to three times of the day.

The photo frame function allows you to read the photos stored on the microSD card in standby mode. This is a practical use of the device, even when idle, which has an aesthetic and decorative function, thanks to a modern design.

The video monitor is white, made of high-quality plastic. The dimensions measure 260x162 mm. Surface-mounted.

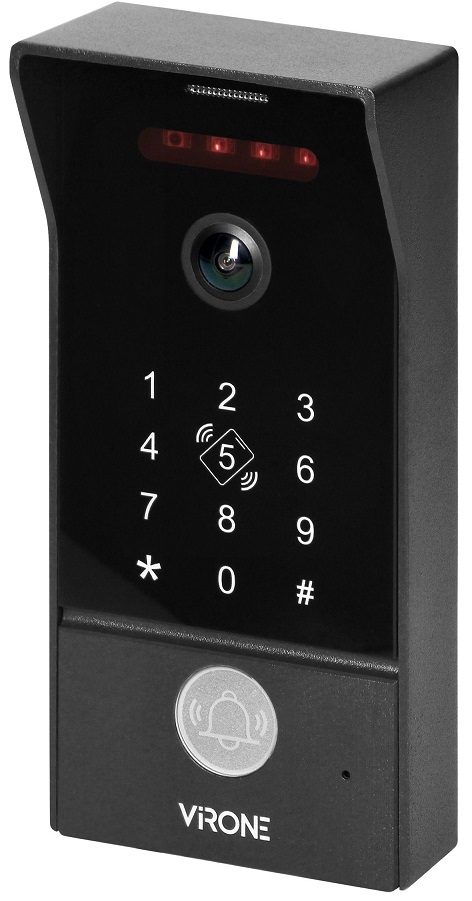

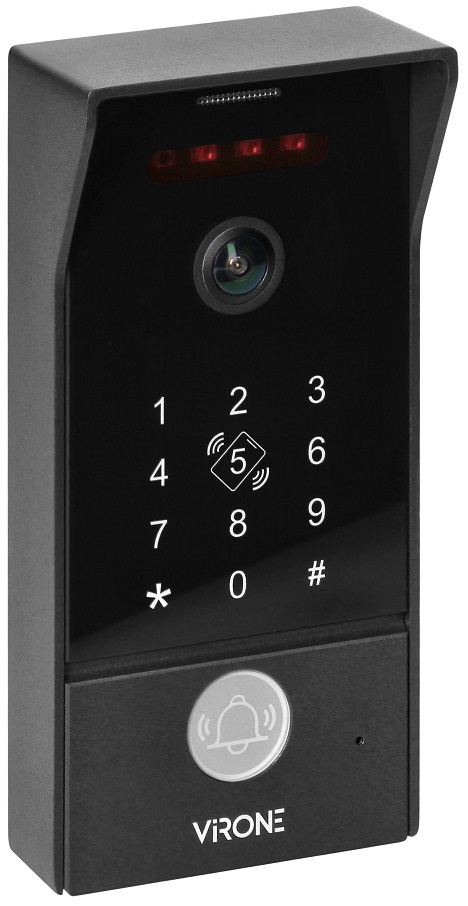

The MAILO outdoor unit is equipped with an advanced access control system. Integrated features such as wicket control, card reader and RFID tag (Mifare 13.56MHz), as well as a code lock, ensure convenience and safety of use. The frequency of proximity cards and tags ensures fast operation, eliminating the need to search for keys or a remote control for the gate. In addition, the gate and wicket can be managed via the monitor and the Tuya Smart mobile application, which increases the convenience during use of the system.

The integrated Full HD camera with 2MP resolution, 1920x1080, 1080p and a very wide viewing angle (144° horizontally, 81° vertically) provides a complete image behind the shutter, and the function of recording videos and photos on the microSD card (with a maximum capacity of 1 TB) allows you to keep recordings even when family members are away.

The IR night light feature ensures a clear and bright image at night without blinding visitors, and the integrated motion sensor detects individuals wandering around the property and notifies them via the mobile app. The user can access the camera view at any time, both with the help of the monitor and the app.

Since there is no need to apply an additional power supply to the electrical outlet (max. 500 A), there are fewer wires running through a garden, making installation easier and more streamlined. The high IP65 ingress protection rating ensures safe use even in adverse weather conditions, the rain cover protects against splashes, and the durable aluminium of the outdoor unit ensures durability and a long service life.

The outdoor unit is made of graphite and measures 70x146 mm. Surface-mounted.

The MAILO video door entry system can be expanded with additional monitors (max. 6 per system) to create a complex entry control and monitoring system. The integrated intercom functionality allows you to call into the house, which makes communication between floors, for example, easier. The possibility of expanding the system in two different options ensures 24-hour protection for family members. The first option is to expand the MAILO with an additional outdoor unit, two CCTV cameras and five monitors. The second is to expand the system with three CCTV cameras and five monitors.

Features
Type: Single-family
With video: ✓
Nominal voltage: 15V DC 2A
Type of supply: Mains powered
Pod and be connected to the smartphone: ✓
Wi-Fi frequency: 2.4 GHz
Wi-Fi standard: 802.11g/n
Application: Tuya Smart
Installation technique: Access control system
Number of wires (*from outdoor unit to electrical attack): 4 (+2)*
Number of indoor stations: 1
Number of outdoor stations: 1
Expandable up to max. number of indoor stations: 6
Expandable up to max. number of outdoor stations: 2
Expandable up to max. number of CCTV cameras: 2
Operating door lock: ✓
Power supply of the electric strike: no additional power supply required
Electric strike connection system: with external panel
With automatic door opener: 񋫳
With day/night function: ✓

Display
Display diagonal: 10"
Display resolution: 1024 x 600 pixels
Touch screen: ✓
Image system: PAL/NTSC
Proprietary image system: Color
With memory function: ✓
SD card reader: ✓
Internal communication: ✓
Number of rings: 12
Specific ring tone: ✓
Volume control: ✓
Ring tone changeable call: ✓
Indoor station material: Plastic
Color indoor station: White
Monitor dimensions - Width: 260 mm
Monitor dimensions - Height: 162 mm
Monitor dimensions - Depth: 24 mm

Outdoor unit
Number of call buttons: 1
Camera resolution: 2MP, 1920x1080, 1080p
Camera viewing angle: 144°
Camera viewing angle: 81°
Presence light: IR
With digital door code: ✓
Proximity card and tag reader: ✓
RFID tag frequency: 13.56MHz
Tag space/information surface: ✗
With cover: ✓
Degree of protection (IP): IP65
Outdoor station material: Aluminium
Outdoor station colour: Silver
Width: 70 mm
Height: 146 mm
Depth: 36 mm
RFID - max. 200 Users
