Tuya Wi-Fi Smart Ventilation Unit with Heat Recovery - OMNYX

Description

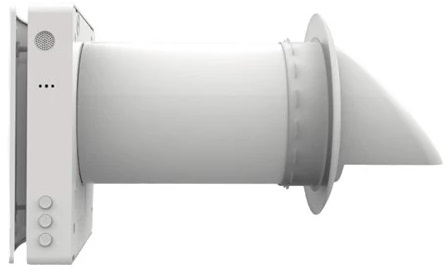

The AV-TTW5-W Smart Heat Recovery Unit is the ideal solution for modern homes and commercial spaces that want to effectively ensure quality air without heat loss. Thanks to the integrated humidity sensor (HR) and WiFi connection, the unit can be easily controlled remotely via the Tuya app, allowing easy management of ventilation according to the current needs of the space. With a low power consumption of 12 W and quiet operation, this unit is ideal for villas, hotels and apartments. In addition, it achieves a recovery efficiency of up to 97%, ensuring maximum energy use and cost savings.

Stylish design
The plain white housing with discreetly integrated buttons fits elegantly into any interior. The careful design is also reflected in the placement and subtlety of the LEDs that indicate the current mode and fan speed. The diodes are not distracting and their light does not disturb or strain the eyes.

F7 + G3 dual filter
Most similar devices are equipped with only a basic G3 class filter, which is used to capture larger particles. However, our stove has a more advanced F7 filter, which provides a higher level of air purification. The G3 filter removes larger impurities, while the F7 filter can effectively capture fine particles such as pollen or even viruses, significantly improving the air quality in the room. You can compare the individual filter classes in the attached table - the darker the green of the leaf, the more effectively the filter can deal with a particular type of pollution.

WIFI
Thanks to the ability to connect directly to a WiFi network, the product can operate independently, and you do not need to purchase any special hub or gateway for it.

Smartphone control
Control is possible via the universal Tuya/Smart Life applications, which are available for Android and iOS and allow you to control thousands of different devices.

This product supports smartphone control in the Tuya (Smart Life) app.

Control via smart control panels, buttons, switches or remote controls
Choose the control method that suits you best. Whether it’s a multi-function control panel with an LCD display, a miniature button, a multi-channel controller, or a single or multiple button switch.

Group control of multiple units at the same time
If you have multiple units, you can connect them into a group and control them all at the same time. The number of units in the group is not limited.

- WiFi control via Tuya/Smart Life app
- Humidity sensor for automatic air quality control
- Air flow rate up to 50 m³/h
- Heat recovery efficiency up to 97%
- Low energy operation with power consumption of only 12 W
- Easy automation and integration into a smart home system
- Quiet operation with noise = 32.7 dB(A)

Features
Product color: White
Installation type: Wall
Protection class: IP22
Maximum RPM: 2000
Number of power levels: 3
Tuya/Smart Life app support
Communication: Wi-Fi, Remote control
Air flow: 50 m³/h
Recovery efficiency: 97 %
Noise level: 32.7 dB
Power consumption: 12 W
Integrated sensors: Humidity
Minimum wall thickness: 275 mm
Maximum wall thickness: 475 mm
Supported systems: Android, iOS
Heat exchanger material: Ceramic
Filter rating: G3
Pipe diameter: 159 mm

Package contents
Heat recovery unit AV-TTW5-W
Remote control: x 1
Mounting kit: x 1
