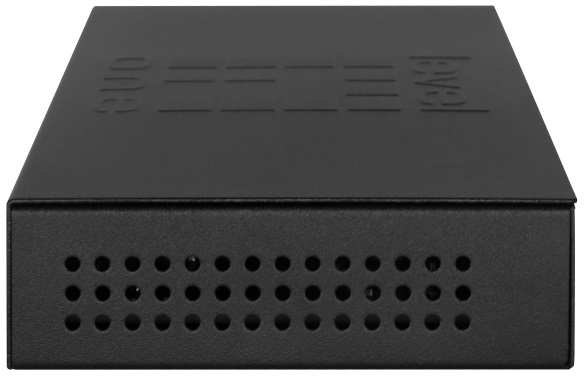

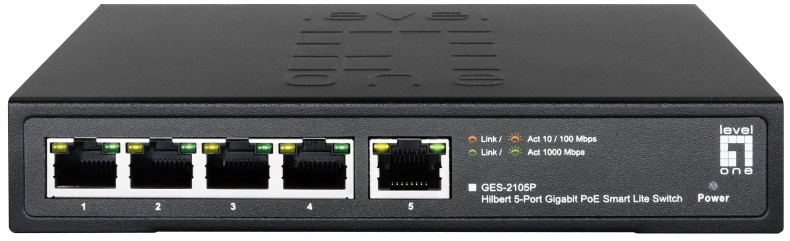

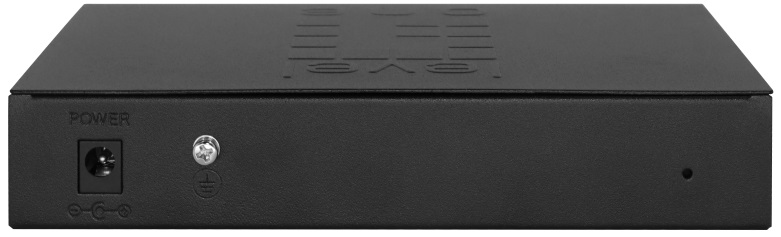

Switch 5 Ports 10/100/1000Mbps GES-2105P - LEVELONE

Management features
Switch type: Managed
Switch layer: L2
Quality of Service (QoS) support: Yes
Web-based management: Yes

Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)

Network
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support: No
Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
Port mirroring: Yes
Full duplex: Yes
Half duplex: Yes
Flow control support: Yes
Link aggregation: Yes
Broadcast storm control: Yes
Rate limiting: Yes
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
MAC address auto-learning supported: Yes
MAC address auto-aging supported: Yes
VLAN support: Yes
Virtual LAN features: Tagged VLAN
Number of VLANs: 32

Data transmission
MAC address table: 2000 entries
Switching capacity: 10 Gbit/s
Number of queues: 4
Jumbo frames support: Yes
Jumbo frames: 9000
Packet buffer memory: 1.5 MB

Security
IGMP snooping: Yes

Multicast features
Multicast support: Yes

Design
Product colour: Black
LED indicators: Yes
Country of origin: China
Certification: UKCA, FCC Class A

Performance
Flash memory: 2 MB
Mean time between failures (MTBF): 43800 h

Technical details
Master (outer) cases per pallet (air): 18 pc(s)
Pallet gross length: 80 cm
Pallet gross width: 120 cm
Pallet height (air): 158.4 cm

Power
Power source: DC/PoE
Power supply included: Yes
Input current: 1.2 A
Input voltage: 54 V
Power consumption (max): 65 W
Surge protection: Yes
Surge protection voltage: 8 kV

Power over Ethernet (PoE)
Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 4
Power over Ethernet (PoE) power per port: 30 W
Total Power over Ethernet (PoE) budget: 60 W

Operational conditions
Operating temperature (T-T): 0 - 45 °C
Storage temperature (T-T): -40 - 70 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%
Heat dissipation: 23.88 BTU/h

Weight & dimensions
Width: 160 mm
Depth: 95 mm
Height: 29 mm
Weight: 400 g

Packaging data
Cables included: AC
Quick start guide: Yes
AC adapter included: Yes
Package type: Box
Package width: 310 mm
Package depth: 230 mm
Package height: 65 mm
Package weight: 920 g

Sustainability
Sustainability compliance: Yes
Sustainability certificates: CE, RoHS

Logistics data
Master (outer) case net weight: 600 g
Master (outer) case width: 350 mm
Master (outer) case length: 330 mm
Master (outer) case height: 480 mm
Master (outer) case gross weight: 9.8 kg
Products per master (outer) case: 10 pc(s)
