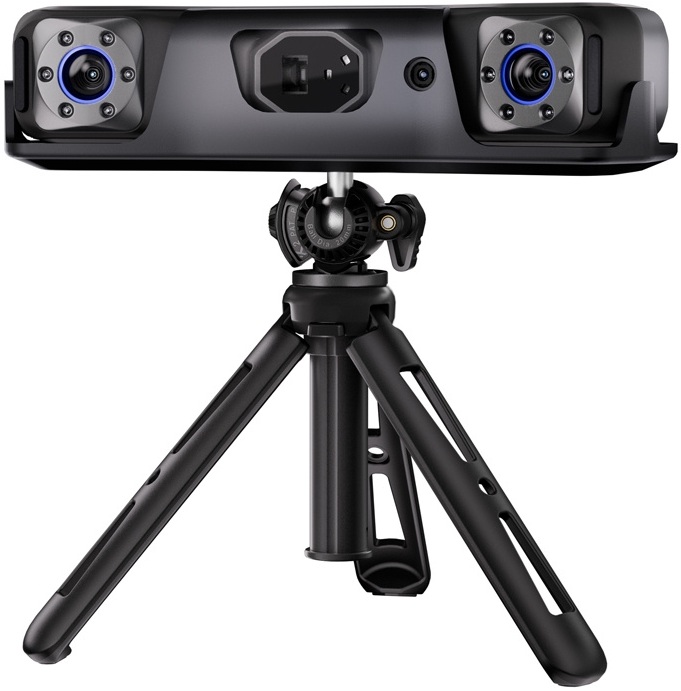

Metrox Advanced 3D Scanner with Tripod - REVOPOINT

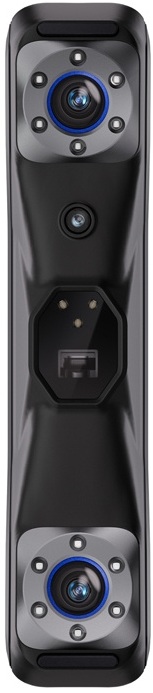

Revopoint Metrox Advanced 3D Scanner
Discover the unparalleled accuracy and versatility of the Revopoint MetroX advanced scanner, an extremely lightweight device that combines a hybrid multiband laser and full-screen structured blue light to capture up to 7,000,000 points per second in the blink of an eye, with 0.03 mm accuracy. Four scanning modes enable perfect reproduction of flat and glossy surfaces, as well as the most intricate details, while the included turntable and intuitive Revo Scan software ensure the rapid creation of 3D metrology models ready for export to CAD (Computer Aided Design, a process that uses software to create, analyze, modify, and document designs) or quality control. The Revopoint MetroX is a tool that will take your projects to the next level and can be used in a variety of situations, from reverse engineering to 3D printing and prototyping. The advanced version includes a Marker Block Kit.

Innovative 3D Scanning Technology
The Revopoint MetroX, with its combination of a hybrid multiband laser and all-blue structured light, enables professional 3D modeling of small to medium-sized objects. With up to fourteen intersecting laser lines and seven parallel lines, plus an impressive 62-line light structure, the device is capable of capturing even the most intricate details and invisible surface features, achieving single-frame accuracy of up to 0.01 mm and total accuracy of up to 0.03 mm. This detailed work makes the scanner an excellent choice for any demanding user.

Versatility in a Single Device
The MetroX model does not require a matting spray to scan glossy or black surfaces. The unit quickly captures data at up to 800,000 points per second in multiband laser mode and up to 7,000,000 points per second in full-field structured light mode. The flexible capture area (from 160 x 70 mm at a distance of 200 mm to 320 x 215 mm at a distance of 400 mm) is ideal for both engineering studios and design offices. It´s a tool that´s revolutionizing the way objects are scanned.

Automation and Intuitive Work
With the included dual-axis automatic turntable, the Revo Scan and MetroX system creates a digital twin of an object with the click of a button, eliminating the need for manual positioning. A real-time control panel with four buttons allows you to pause work, adjust the camera´s exposure depth, and adjust digital zoom, while the integrated RGB HD (Red Green Blue) camera ensures accurate color reproduction in scans. With four scanning modes, you can adapt the device to your current needs to accurately reproduce what you need most.

Complete Revo Scan Software
Revo Scan is an extremely intuitive tool that assists with the entire scanning process, from setting scanning parameters, through automatic or manual point cloud processing, to editing, merging model segments, and exporting to PLY, OBJ, STL, ASC, 3MF, GLTF, or FBX formats. Easily remove unwanted data, smooth surfaces, fill cavities, and merge partial scans to create a consistent model, ready for further processing in software such as Quicksurface, Geomagic Wrap, or Geomagic Control. A built-in calibration wizard ensures accurate and reliable measurement results.

Professional Applications
Revopoint MetroX will prove its value in reverse engineering processes, enabling the rapid generation of 3D models ready for CAD scanning (the process of transforming physical objects or documents into digital CAD models using 3D scanning). It will be excellent for quality control, where defects and deviations in production can be quickly identified; incremental technology, creating faithful digital twins of objects for 3D printing; or rapid prototyping, where precisely dimensioned models minimize iterations and save time and resources.

Smart Design
The Revopoint MetroX scanner weighs just 508g and measures 209 x 88 x 44mm, making it extremely convenient to use. You can easily store it in the included storage case, and it won´t take up much space on your desktop. Work for hours without feeling uncomfortable with the Revopoint MetroX!

Advanced Version for Greater Convenience
The included Marker Pad Kit significantly saves time by reducing the number of markers needed when setting up laser scans or scanning featureless objects in full-field mode (a mode that uses the camera´s entire field of view to capture object data simultaneously, rather than scanning point by point or line by line). The markers are reusable and can be combined in any configuration.

Features
Technology Multi-line laser scanning and full-field structured light scanning
Single-frame accuracy: 0.01 mm
Single-frame accuracy: 0.03 mm
Volumetric accuracy: 0.03 mm + 0.1 mm x L (m) (L is the length of the scanned object)
Anastomosis point distance: 0.05 mm
Working range: 200 - 400 mm
Single capture area at shortest distance: 160 x 70 mm to 200 mm
Single capture area at longest distance: 320 x 215 mm to 400 mm
Minimum scan volume: 10 x 10 x 10 mm
Maximum scan volume: 1 x 1 x 1 m
Multi-line laser scanning: 800,000 points per second; Full-field structured light scanning: 7,000,000 points per second
3D light source: 14 intercepted blue laser lines, 7 parallel blue lines, 62 blue structured light lines
Camera resolution: 2 MP depth camera, 2 MP RGB camera
Quad-core ARM CPU, 2.0 GHz
Depth camera fill lights: 12 blue LED lights

Product dimensions and weight
Dimensions: 209 x 88 x 44 mm
Weight: 508 g

Package contents
MetroX 3D Scanner
Wrist strap
Tripod
Scanner mount
Power supply
Two-axis turntable
Calibration plate
Markers (6 mm)
USB Type-A to Type-C cable
USB Type-C to Type-C adapter A
Storage Case
Scanning Bust
10x Magnetic Ball Markers
10x Magnetic Dome Markers
4x Magnetic Pyramid Markers
4x Magnetic Strip Markers
Instruction Manual
