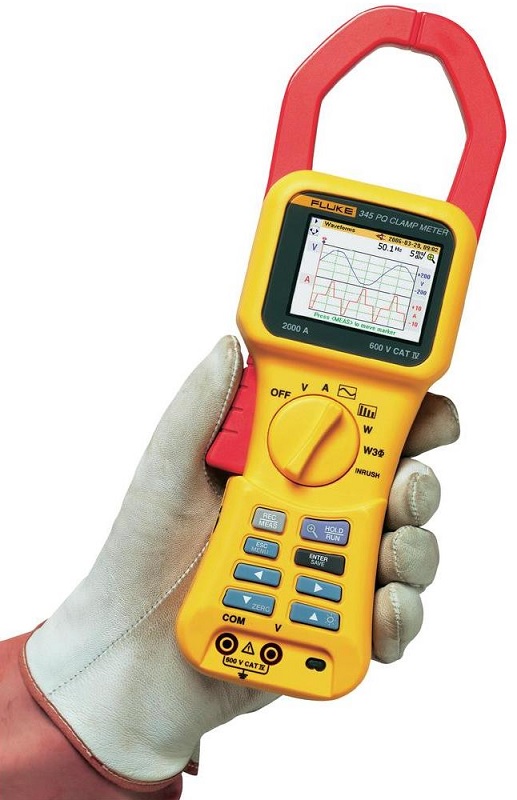

Power Quality Digital Ammeter Clamp - FLUKE

AC/DC current: Measurement of AC current up to 1400 A RMS and DC current up to 2000 A without breaking the circuit

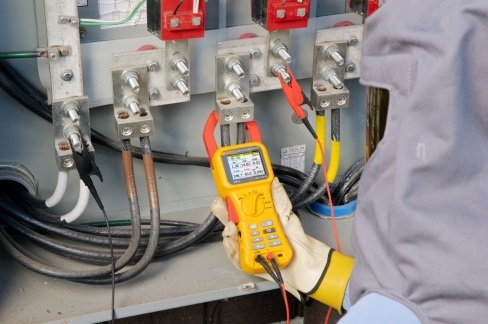

Highest safety rating: 600 V CAT IV power analyzer rated for use at the service entrance
Accurate in noisy environments: It includes a low-pass filter, which allows you to make correct measurements, even with distorted waveforms present in electronic loads
Recording of data: Identify intermittent faults, recording any power quality parameter for minutes, or for a month, including harmonics recording
Battery check: Direct measurement of DC Ripple (%) for checking batteries and DC systems
Harmonic fault detection: Analyze and record harmonics digitally or graphically
Inrush current: Capture and analyze nuisance trips, from 3 to 300 seconds
Easy to use: Easily confirm the setup for waveforms and trends with gr backlit color display
Three-phase power: Built-in capability for compensated loads
Graph viewing and reporting: Use included PowerLog software
Display
Color LCD 320 x 240 pixels (70 mm diagonal) with 2-level backlight

Power supply
1.5 V AA alkaline batteries MN 1500 or IEC LR6 x 6
Battery life (typical)
> 10 hours (full backlight)
> 12 hours (low backlight)
AC adapter BE345
Input 110 /230 V 50/60 Hz
Output 15 V DC, 300 mA

Environmental conditions (For indoor use only)
Reference conditions
The accuracies have been verified under conditions of 23°C ± 1°C (73.4 °F ± 1.8 °F)
Operating temperature
0 °C to 50 °C (32 °F to 122 °F)
Current temperature coefficient
= ± 0.15 % leit. per °C
Voltage temperature coefficient
= ± 0.15 % leit. per °C
Maximum relative humidity
80 % for temperatures up to 31 °C (87 °F), decreasing linearly to 50 % relative humidity at 40 °C (104 °F)
Maximum operating altitude
2000 m

Electrical safety
Safety IEC 61010-1 600 V CAT IV, double or reinforced insulation, pollution degree 2
IP40 protection; EN60529
Maximum safety operating voltages
Current measurement 600 V AC RMS or DC between uninsulated conductors and earth
Voltage measurement 600 V AC RMS or DC between input terminal and earth, or 825 V between energized phase voltages (delta power configuration)


EMC
Emission
IEC/EN 61326- 1:1997, Class A
Immunity
IEC/EN 61326-1:1997, Annex C, Performance Criterion B

Weight and Dimensions
Dimensions (length x width x depth)
300 mm x 98 mm x 52 mm
Weight including batteries
820 g
Clamp opening
60 mm
Capacity of the tweezers
Diameter 58 mm
Cleaning
The unit can be cleaned with a cloth dampened with isopropanol. Do not use abrasives or other solvents.

Current measurement (DC, DC RMS, AC?RMS)
Measuring range
0 to 2000 A DC or 1400 AC RMS
Auto range function
40 A / 400 A / 2000 A
Resolution
10 mA in range 40 A
100 mA in range 400 A
1 A in the range 2000 A
Accuracy: DC and DC RMS
I > 10 A: ± 1.5 % leit. ± 5 digits
I < 10 A: ± 0.2 A
Accuracy: AVERAGE
I > 10 A: ± 3 % milk. ± 5 digits
I < 10 A: ± 0.5 A
Precision: Peak
I > 10 A: ± 5 % leit. ± 5 digits
I < 10 A: ± 0.5 A
Precision: AHr
I > 10 A: ± 2 % leit. ± 5 digits
I < 10 A: ± 0.5 AHr
Precision: CF (Crest Factor)
1.1 = CF < 3: ± 3 % leit. ± 5 digits
3 = CF < 5: ± 5 % milk. ± 5 digits
Resolution: 0.01
Precision: RPL (Ripple)
2 % = RPL < 100 %: ± 3 % leit. ± 5 digits
100 % = RPL < 600 %: ± 5 % milk. ± 5 digits
Resolution: 0.1 %
IDC > 5 A, IAC > 2 A


Voltage measurement (DC, DC RMS, AC?RMS)
Measuring range
0 to 825 V DC or AC RMS
Auto range function
4 V / 40 V / 400 V / 750 V
Resolution
1 mV in the range 4 V
10 mV in the range 40 V
100 mV in the range 400 V
1 V in the range 750 V
Accuracy: DC and DC RMS
V > 1 V: ± 1 % leit. ± 5 digits
V < 1 V: ± 0.02 V
Accuracy: AVERAGE
V > 1 V: ± 3 % le
