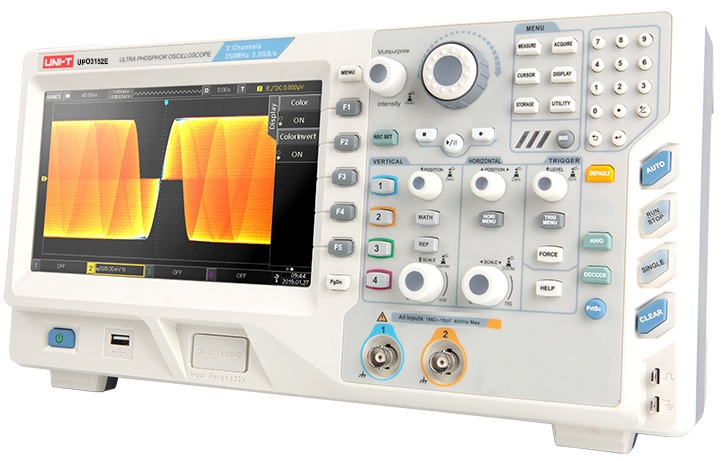

Digital Oscilloscope "Ultra Phosphor" USB LAN 2 Channels 150MHz - UNI-T

UPO3000E series ultra-phosphorus oscilloscopes can realize functions of deep storage, high waveform capture rate, real-time waveform recording and playback, multi-level intensity rating display and more with special UNI-T 3D technology.
Some competitive features are: 150MHz bandwidth, real-time sampling rate up to 2.5GS/s, 2 channels, default memory depth of 70Mpts, waveform capture rate over 200,000wfms /sec, over 100,000 waveforms, up to 256 levels of intensity gradation display.
They can be operated with a standard 25MHz dual-channel wavefunction/arbitrary generator or an optional digital multimeter module (UT-M12).
The oscilloscopes have multiple functions: multiple trigger , Bus decoding functions, edge, pulse width, slope, video, runt, windows, Nth edge, delay, overtime, code, USB, RS232/UART, I2C, SPI, CAN, LIN, FlexRay triggers, duration, setup/hold, among others.

Applications:
Serial data analysis, jitter analysis, testing of data storage devices, electrical equipment design and of electric vehicles, evaluation of the frequency response of sound equipment, troubleshooting of automotive engines, repair and maintenance of electronic technicians.

- Channels: 2; Bandwidth: 150MHz
- Sampling rate: 2.5GS/s; Memory depth: 70Mpts
- Waveform capture rate: 200,000wfms / s
- Independent provider
- 256-level intensity gradation display
- Multiple triggering and decoding
- 8" TFT LCD, WVGA (800 × 480)
- Up to 100,000 waveform recording frames

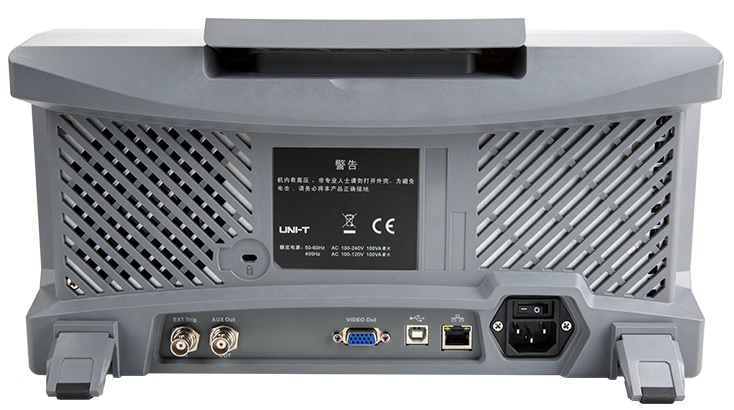

- Interfaces: USB host, USB device , LAN, EXT Trig, AUX out (Trig Out, Pass/Fail), VGA

- Analog Bandwidth: 150 MHz
- Channels: 2
- Sampling rate: 2.5GS / s (single channel), 1.25GS / s (dual channels / four channels)
- Memory depth: Each channel: auto, 7kpts, 70kpts, 700kpts, 7Mpts, 70Mpts selectable (open all 4 channels at the same time)
- Waveform capture rate: 200,000wfms/s
- Timebase scale (s/div): 2ns/div ~ 40s / div (Real-time sample rate, memory depth display) (step by 1-2-4 stall?
- Input impedance: (1MO ± 1%) II (18pF ± 3pF)
- Vertical Scale (V / div): 1mV / div ~ 20V / div (1MO)
- DC gain accuracy: <5mV: ± 3%, =5mV: ± 2%
- Waveform recording: Single channel: 100,000 frames; Adjustable range: 1.00 ~ 1000s
- Trigger types: Edge, Runt, Window, Nth Edge, Delay, Overtime, Duration, Setup/Hold, Pulse Width, Tilt, Video, Code; RS232 / UART, I2C, SPI, USB, CAN, LIN, FlexRay
- Decoder bus: RS232 / UART, I2C, SPI, USB, CAN, LIN, FlexRay
- Waveform operations : A + B, AB, AxB, A / B, FFT, advanced operations and editable logic
- Automatic measurements: Max, Min, High, Low, Amp, Pk-Pk, Average, Average, CycMean, RMS, CycRMS, Period, Freq, Rise, Fall, Fall Delay, Fall Delay, Width, Width, FRR, FRF, FFR, FFF, LRF, LRR, LFR, LFF, +Duty, -Duty, Area, CycArea, OverSht, PreSht, Phase, 34 parameters in total
- Measurement display: 5 types
- Measurement statistics: Mean, Max, Min, standard deviation and number of measurements
- Frequency counter: 6 bits
- Standard Interfaces: USB Host, USB Device, LAN, EXT Trig, AUX Output (Trig Out, Pass/Fail), VGA; Optional: AWG
- Power: 100V ~ 240V ACrms, 50Hz / 60Hz
- Display: 8" TFT LCD, WVGA (800 x 480)
- Product color: White and gray
- Product net weight: 4.2 kg
- Product size: 370 mm x 195 mm x 125 mm
