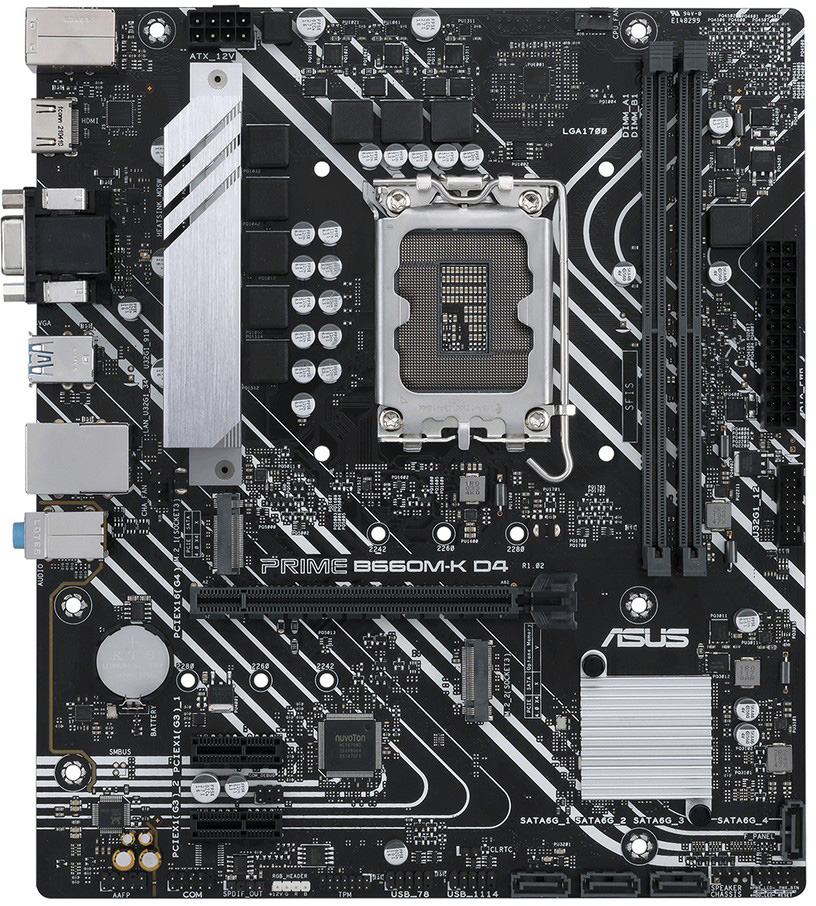

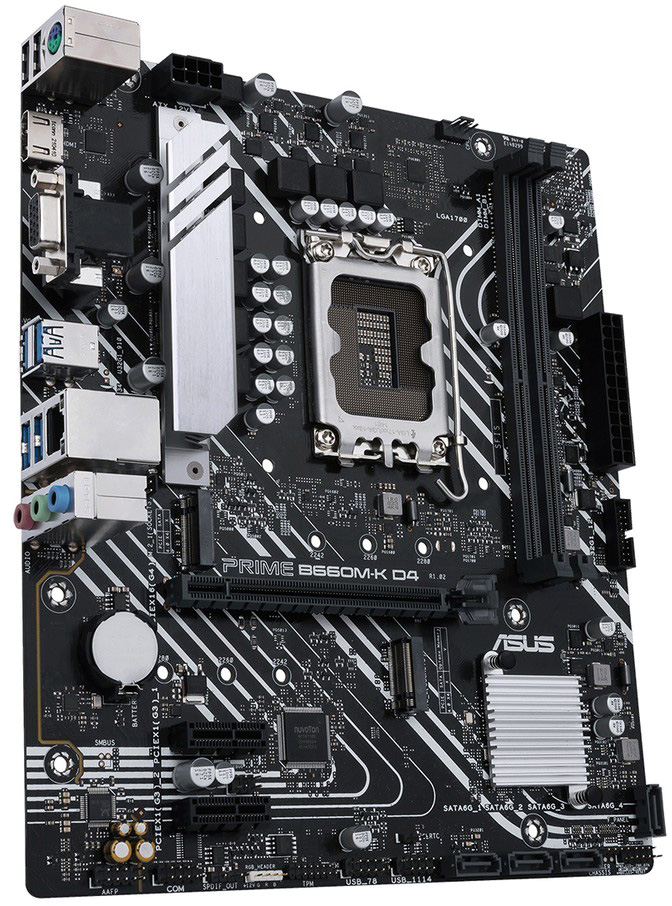

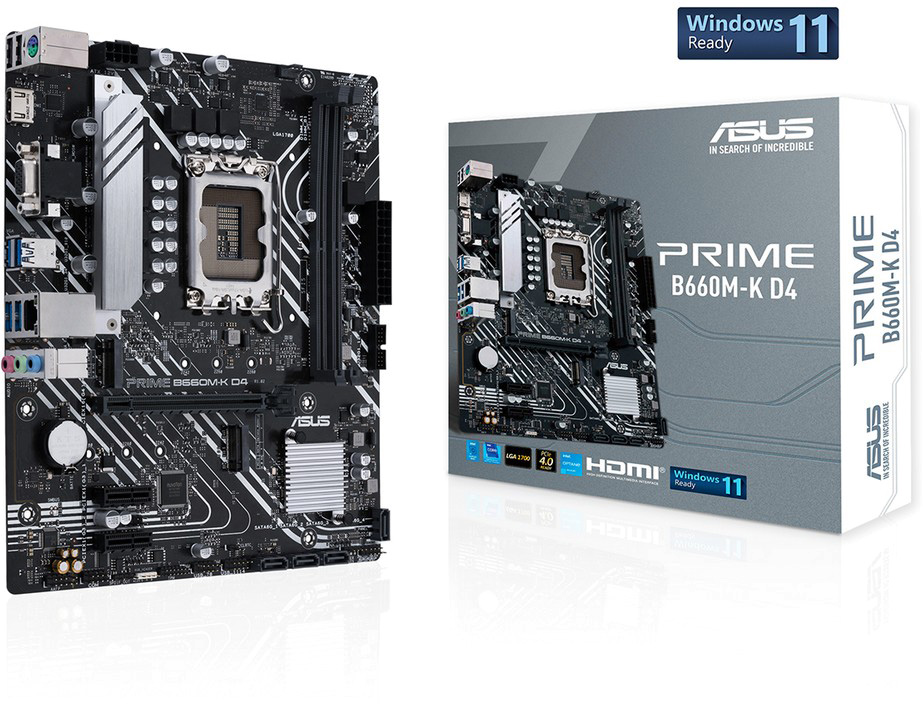

Micro-ATX Prime B660M-K D4 Motherboard - ASUS

FLEXIBILITY
Comprehensive controls form the basis of the ASUS Prime series. The Prime B660 has flexible tools to fine-tune every aspect of your system, allowing performance tweaks to perfectly match the way you work to maximize productivity.

INTEGRAL ENERGY EFFICIENCY
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode - a smart setting that creates an extremely energy-saving scenario by shutting down unused I/O controllers.

UEFI BIOS
The famous ASUS UEFI BIOS provides everything you need to configure and tune your system. It offers smartly streamlined options for beginners to PC building, as well as comprehensive features for seasoned veterans.

HEAT DISSIPATER M.2
The M.2 heatsink takes away the throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws.

Processor:
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold, and Celeron® processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset: Intel® B660

RAM memory:
2 x DIMM, Max. 64GB, DDR4 5333(OC) @ 2133 MHz Non-ECC, Un-buffered memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem

Graphics:
1x VGA
1x DisplayPort 1.4
Supports max 4K@60Hz

Expansion Slots:
Intel® 12th Generation Processors:
1x PCIe 4.0/3.0 x16 slot
Intel® B660 Chipset
2x PCIe 3.0 x1 slots

Storage:
Supports 2x M.2 slots and 4x SATA 6Gb/s ports
12th Generation Intel® Processors
M.2_1 slot (Key M), type 2242/2260/2280
Intel® B660 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4x SATA 6Gb/s ports

Network:
1 x Realtek 1Gb Ethernet
ASUS LANGuard

USB:
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio:
Realtek 7.1 Surround Sound High Definition Audio CODEC
Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports audio up to 24-Bit/192 kHz

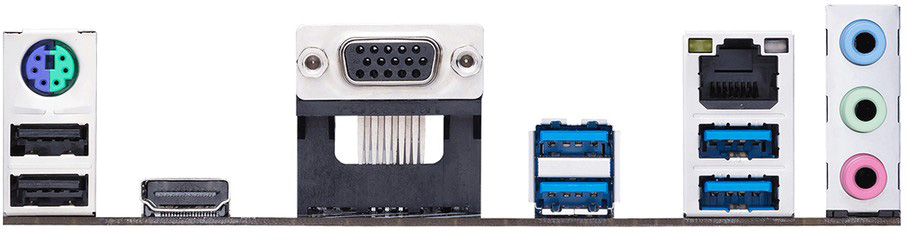

Rear Panel I/O Ports:
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x D-Sub port
1 x HDMI® port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port

Dimensions:Micro-ATX format, 24.4 cm x 21.1 cm
