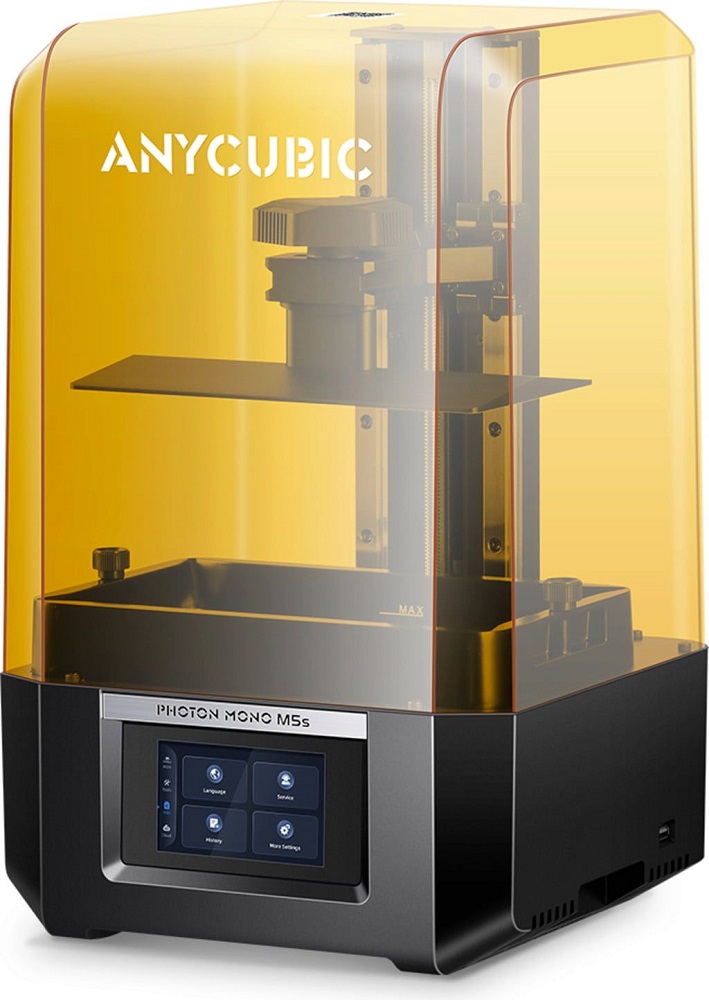

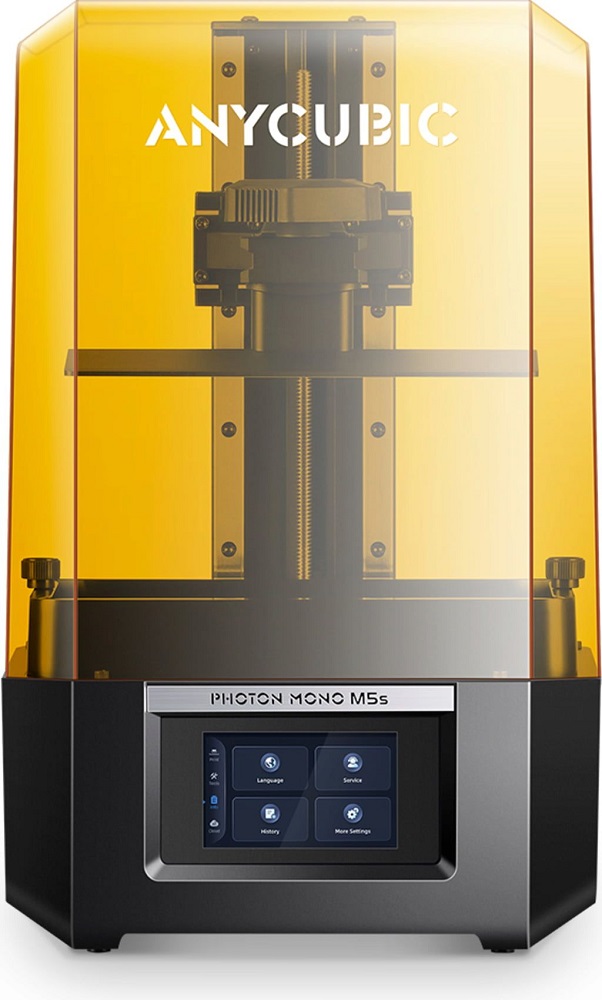

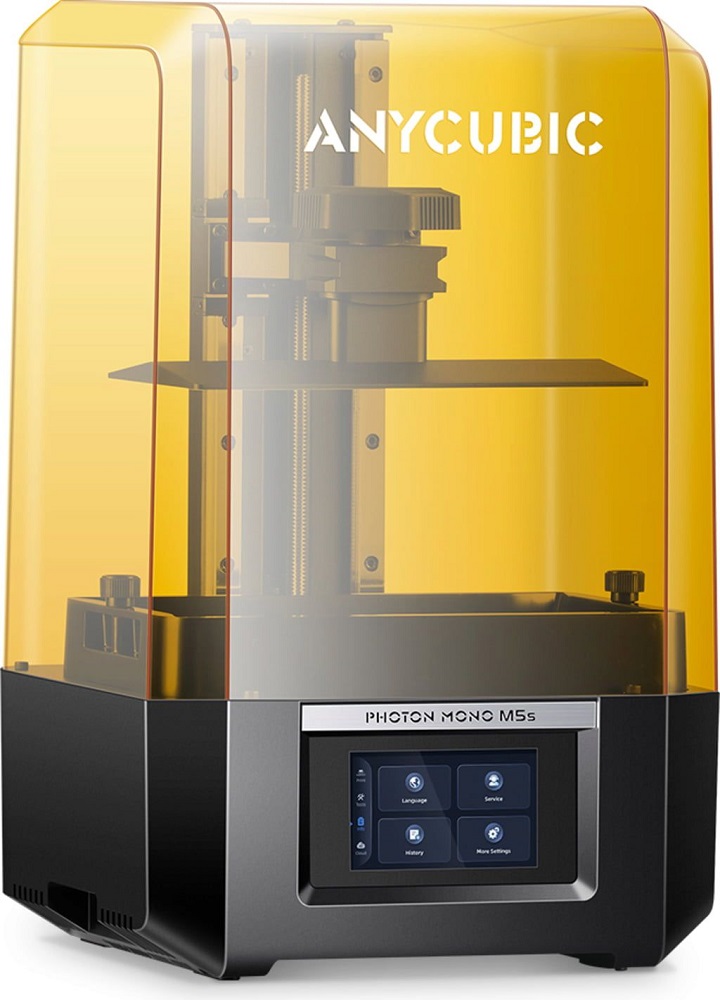

Photon Mono M5s 10.1" 12K Mono LCD Resin 3D Printer (218 x 123 x 200mm) - ANYCUBIC

The Anycubic Photon Mono M5s is the first non-leveling resin printer for the home! With a resolution of 12K and a build volume of 218 x 123 x 200 mm, it allows you to turn the most creative ideas into reality. With fine details, sharp edges and smooth surfaces without layering, the resin printer guarantees the best printing results!

12K resolution and 480:1 contrast for unparalleled detail
With a 10.1-inch monochrome LCD screen and an incredible 12K resolution of 11520 x 5120 pixels, the Photon Mono M5s achieves an accuracy of 19 µm. The 12K LCD display with 480:1 contrast provides sharp edges and a stunning surface finish with fine-line print details!

It is possible to print up to more than 2000 hours with the LCD!
With an average print speed of 105 mm/h 3x faster

The Photon Mono M5s prints at an average speed of 105 mm/h when using a high speed resin. By using a high-speed release film, the release force is effectively reduced, resulting in successful print quality. At the same time, the separation height is reduced and the take-off speed is increased. Compared to other resin printers that require 30mm/h for the same model, the Photon Mono M5s is up to 3 times faster!

When using a standard resin, the Photon Mono M5s works at an average speed of 70 mm/h.

Levelless printing for more success

The resin printer has a mechanical sensor on the cantilever arm. It first detects the fit between the print bed and the floating leveling module, and then automatically adjusts it based on the detection data. Annoying leveling errors are eliminated and greater printing success is guaranteed!

Automatic device check

The resin printer has an automatic device check. The printer performs several tests on the functionality or connectivity of its individual parts: the display screen, the mechanical detection module, and the operating status of the engine.

The resin printer has an automatic device check

This way, hardware problems can be quickly detected and corrected without wasting valuable time searching for a needle in a haystack.

Resin detection mode

If an "unforeseen" resin shortage occurs, irreparable printing errors may occur. To achieve this, the Photon Mono M5s is equipped with an intelligent resin detection mode. Before starting printing, it automatically checks whether the amount of resin in the container meets the printing requirements.

Print status detection

This feature reminds you of common printing errors caused by lack of resin. This significantly reduces wasted resin and time. The function also provides an analysis of possible causes of errors and gives tips on how to increase printing efficiency.

Anycubic App

With the Anycubic App, popular pre-cut templates and STLs are at your fingertips. An easy-to-use task screen ensures full control of the printing process.

Anycubic Photon Workshop 3.1 with new support algorithm

Anycubic´s cutting software has been updated to Anycubic Photon Workshop 3.1. In the new version, it is possible to use the "Intelligent Mode" option, for example, to set the exposure parameters so that they are adapted to the smallest details and the exact size of the model. This helps reduce printing errors due to incorrect parameter settings.

The new support algorithm brings many advantages:
Improved printing stability,
Reduced possibility of damage to the model surface,
Easy removal of support structures without residue,
Repair of damaged models,
Simply designed drilling and cutting processes.

Other features:
Removable cover that effectively protects against UV radiation,
Resin tank with scale markings,
LED matrix UV light source,
4.3´´ TFT touch keyboard,
Laser engraved aluminum alloy construction platform,
LCD anti-scratch film,
Power supply: 100 Watt nominal power.
