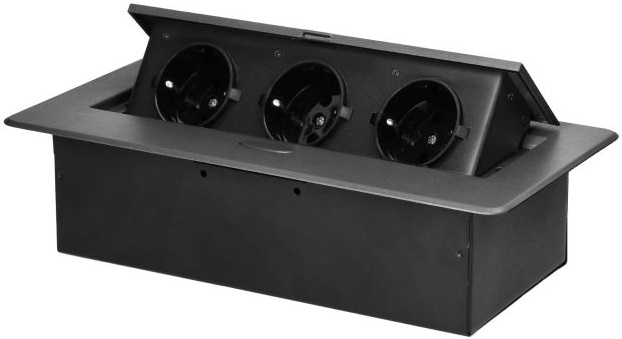

Hidden Triple Extension "POP-UP" for Desks, Counters (Graphite) - ORNO

The recessed socket for furniture with a flat, milled edge is characterized not only by its minimalist design, but also by its functionality. The milled edge allows you to aesthetically install the socket cassette so that the mounting hole and cut lines remain covered.

A differentiator of the new powerbox model is the complete lower housing, which facilitates installation and improves safety. There is no access to electrical sockets and a cable gland additionally covered with rubber sealing protects against unwanted entry and mechanical damage. The outlet also has safety shutters, and the entire box allows you to close the hinged lid and hide the unused device on the counter.

The graphite powder coated outlet blends well with the finish of most furniture and blends colorfully into most arrangements. The refined shape makes using a socket built into furniture a stylish alternative to the usual extension cords or power strips and effectively avoids tangled cables.

The use of high quality materials, zinc and steel, guarantees safe and comfortable use for many years and resistance to damage.

The device has an IP20 protection level and is ideal for use in the home, office, reception, conference room, school study, kitchen or hotel dry areas.

The recessed socket for locking furniture allows the connection of three devices at the same time, as it is equipped with three Schuko type sockets with earth connection (3x2P+Z).

The maximum load of the device is 3680W. You can easily connect, for example, a home office in the form of a monitor and computer, charge a phone or power bank and close the socket when you are done working. We recommend a 3 x 1.5 mm2 cable for the socket.

Features
Model: Built-in
Foldable: ✓
Extensible: ✗
Rated voltage: 230V AC
Frequency: 50Hz
Max load: 3680W
Socket standard: Schuko (type F)
Number of sockets with protective contact (SCHUKO): 3
Wireless Charger:
Degree of protection (IP): IP20
Format: Rectangular
Length: 132mm
Width: 265mm
Height: 67.5mm
Edge thickness: 2.5mm
Mounting hole dimensions, length: 112mm
Mounting hole dimensions, width: 226mm
Built-in depth: 65mm
Material: Zinc and steel
Graphite color
Others: full bottom construction
