ATX S25-V Black Case - Sharkoon

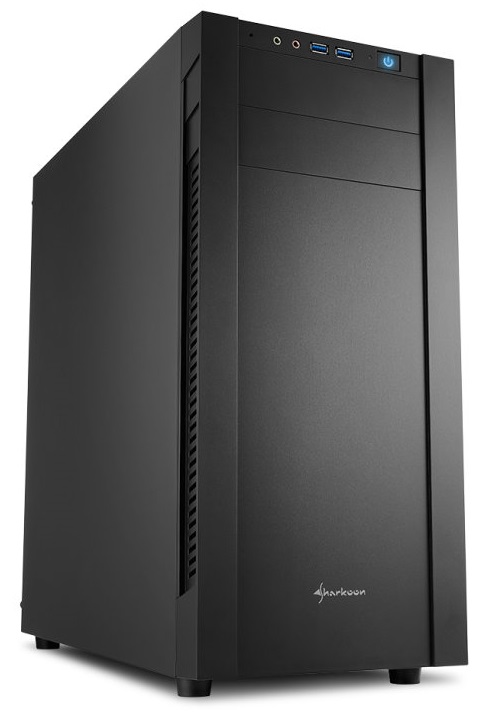

The S25-V all-black case captivates attention with its modern design and numerous features. The elegant appearance of the case is not only on the outside, but also on the inside. Simple on the outside and tidy on the inside ? The power supply, hard drive and cables simply disappear inside the case, thus maintaining a clean and uncluttered look.

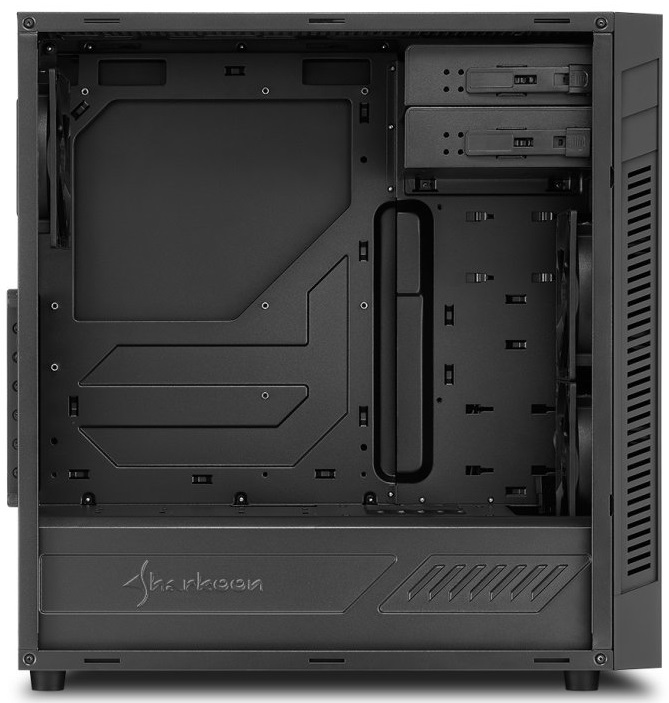

Systematic arrangement
The special design of the case provides many opportunities for discreet installation of various components. Cabling can be discreet and hidden without affecting the airflow inside the case. The power supply for up to three 3.5? hard drives can be decoupled from the bottom of the case without detracting from the appearance. Air vents in the tunnel, sides and top ensure optimal cooling of hard drives. The motherboard along with all other components fit perfectly thanks to the cable outlets. Installing a new CPU heatsink is extremely easy thanks to an opening in the motherboard tray. A tower cooler up to 16.7 cm in height can also be installed. The maximum length for graphics cards is 40cm; power supply with a length of up to 20.5 cm. Three pre-installed dust filters protect installed hardware. For cleaning, the dust filters are easily removable, just remove, clean and put them back. Another filter is also pre-installed on the top panel, which can be quickly removed thanks to its magnetic fastener.

Cable-free front panel design
Other A big advantage of the S25-V case is its cable-free front panel design. The front panel can be easily removed without needing to disconnect cables. This makes it easy to install 5.25? or 3.5? drives.

Optimal preparation for perfect airflow
The Front Panel has numerous air inlets coming from the right and left ensuring air supplies that are not visible from the front of the case. Also on the front of the case, behind the dust filter, fans up to 120 mm or 140 mm can be installed. For water cooling, the S25-V offers the possibility of 240 mm or 280 mm radiators, with a total height of 5.5 cm including the fan to be operated in front of the case. On the rear panel of the case there is a pre-installed 120 mm fan. Likewise, three 120mm fans or two 140mm fans can be installed under the top magnetic filter. Oval cutouts provide perfect placement for fans or radiators

Modern front connectors
Two USB 3.0 ports and two audio ports on the front of the case provide access fast way to connect the most important peripheral devices. USB 3.0 ports are connected via a 19-pin motherboard header, including an alternate USB 2.0 plug to ensure compatibility with older motherboards

Versatile mounting options
For optical drives, the S25-V provides two 5.25? drive bays with the ease of tool-free installation. Through the 5.25? to 3.5? bay cover, a card reader can be quickly and easily placed in one of the two 5.25? drive bays. Instead of hard disks, if necessary two 2.5? HDD/SDDs can be installed. If more space is needed, the bolt-on drive bays can be completely removed. At the bottom of the case, up to two 3.5? hard drives, or two decoupled 2.5? HDD/SDDs are installed via a mounting frame. Space for another 3.5? drive is also available at the bottom of the case. Behind the S25-Vs motherboard tray, and in the tunnel, there are two brackets for drive bay trays, thus allowing, through a convenient screw-in system, the installation of up to two 2.5? HDD/SSDs.


Features
-Interior painting;
- Tool-less installation devices;
- Cable management system;
Form factor: ATX
Expansion slots: 7
Side Panel: Metal
Front Panel: 1x 120 mm LED fan (pre -installed) or radiator (optional)
Rear Panel: 1x 120 mm LED fan (pre-installed)
Top Panel: 3x 120 mm or 2x 140 mm fan (optional) or radiator (optional) (With optical disc drive removed)
Weight: 6.5 kg
Dimensions: 45 x 21 x 46.5 cm


Compatibility
Motherboard: Mini-ITX, Micro-ATX, ATX
Maximum graphics card length: 40 cm (Middle HDD slot removed)
Maximum cooler height CPU: 16.7 cm
Maximum power supply length: 20.5 cm
Maximum radiator height incl. fan: 5.5 cm (Middle HDD slot removed)
